Removing the Flange

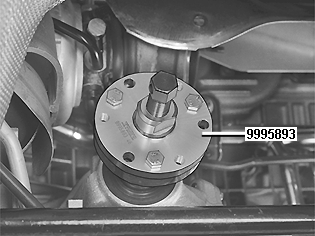

Fig 1: Removing/Installing Flange Using Puller 999 5893
GLL109851Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the flange. Use puller 9995893 .

Check the seal face on the flange. Replace the flange if it is damaged.
