Removing the Charge Air Pipe

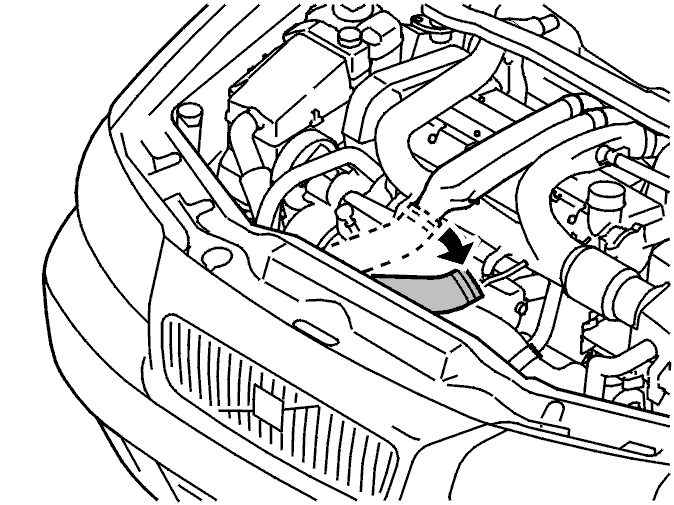

Fig 1: Charge Air Pipe On Intake Between Throttle Module And Charge Air Cooler

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the charge air pipe on the intake between the throttle module and the charge air cooler.

  HINT: If necessary use a hot air gun to loosen the pipe

• undo the hose clamp on the charge air pipe at the fuel rail. Separate the hose and pipe.

Fig 2: Identifying Servo Oil Reservoir And Expansion Tank

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the servo reservoir and the expansion tank on the engine.
