Installing the Flange On the Pinion

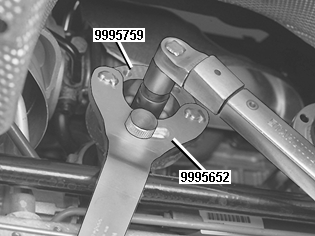

Fig 1: Installing Flange On Pinion

GLL109837

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the carrier using the marks made earlier. If necessary, use tool 9995504 .
