Installing the cooler unit

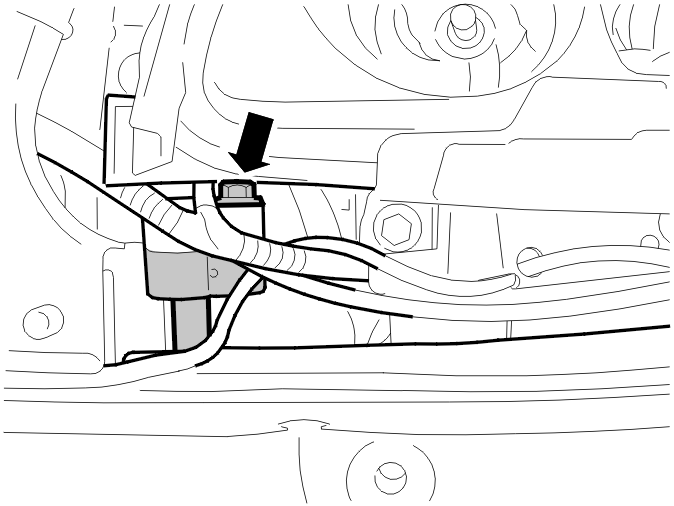

Fig 1: Identifying Lower Mounting For Air Conditioning Aggregate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the air conditioning aggregate on the transmission jack and raise it carefully.

Raise until it is approximately 20 cm from the installed position. Connect the connector to the dryer.

Raise fully and install the 2 M8 screws.

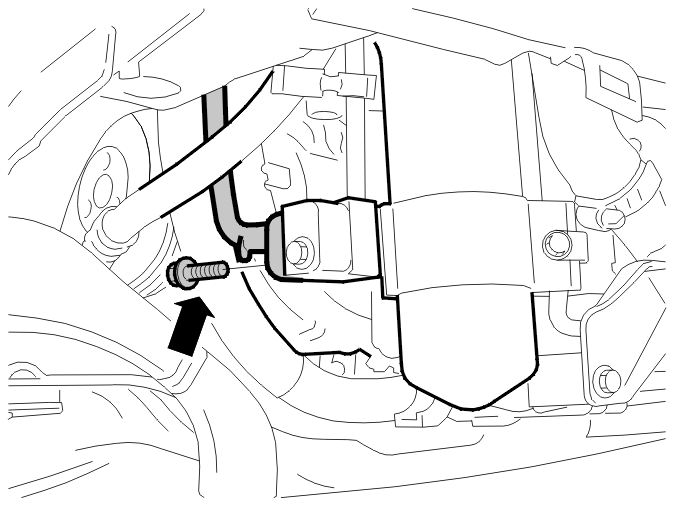

Fig 2: Identifying Bolt

Courtesy of VOLVO CARS OF NORTH AMERICA.

Right-hand side:

Install the pipe on the dryer bottle using an M6 screw. Use a new O-ring.

Fig 3: Identifying Bolt

Courtesy of VOLVO CARS OF NORTH AMERICA.

Left side:

Install the pipe on the condenser using an M8 screw. Use a new O-ring.

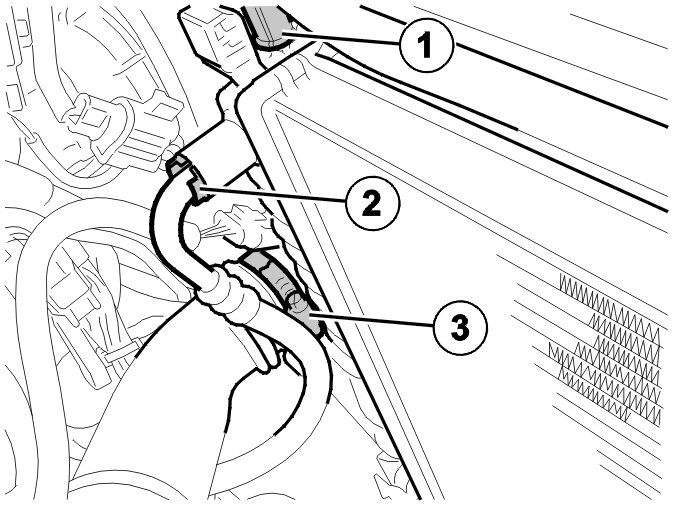

Fig 4: Identifying Hose Connections

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the hose on the additional charge air cooler (CAC)
• the lower radiator hose
• the lower oil cooler hose (automatics only).

Fig 1: Air Baffle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the air baffle
• the air hose between the air cleaner (ACL) housing and the front cover plate
• the air cleaner (ACL) housing.
