The connector with cable and cable protector

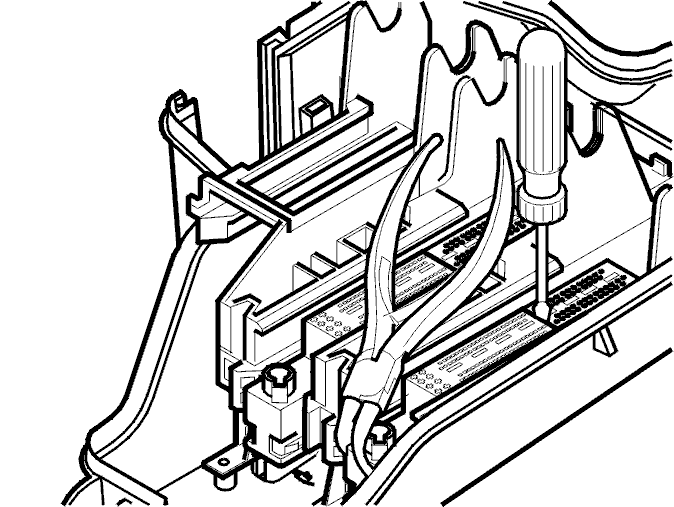

Fig 1: Disconnecting Connector By Releasing Catches At Front Edge Using Pliers & Pry Out Connector Using A Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the retaining clip from the connector using a screwdriver
• Disconnect the connector by releasing the catches at the front edge using pliers. Pry out the connector using a screwdriver
• Lift out the connector with the protection underneath and put it to one side.
