Removing The Wiper Mechanism And Cover

Fig 1: Identifying Wiper Mechanism Mounting Bolts
GLL169751Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the wiper mechanism according to: Wiper Mechanism, Windshield, Replacing

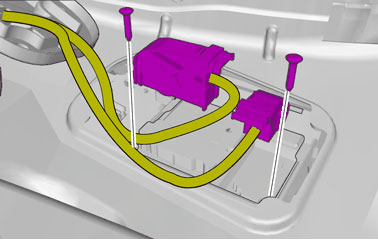

Fig 2: Identifying Wiper Mechanism Connectors
GLL169752Courtesy of VOLVO CARS OF NORTH AMERICA.
