Identifying The Integrated Relay / Fusebox In The Engine Compartment

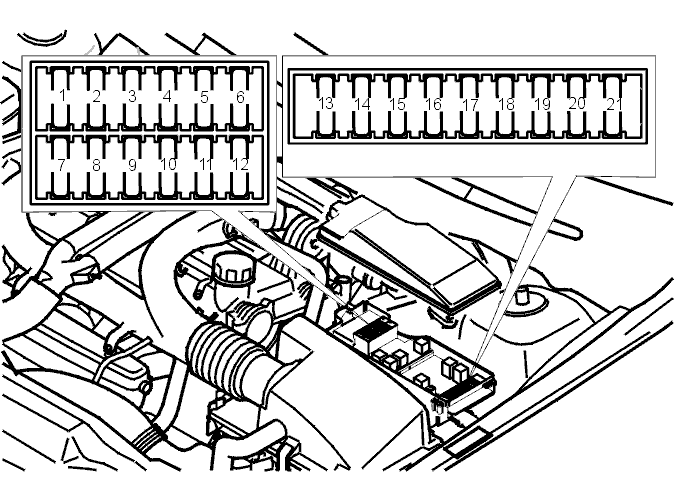

Fig 1: Identifying Fuses In Engine Compartment Integrated Relay/Fusebox

Courtesy of VOLVO CARS OF NORTH AMERICA.

For the location of the relays and fuses, see:

1. Wiring diagram for relevant model year
2. Decals at both the integrated relay box and fusebox in the car
3. Pocket data book
4. Owner's Manual.

Fig 2: Identifying Fuses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Select the relevant integrated relay / fusebox

• For integrated relay / fuseboxes with 21 fuses, see Integrated Relay / Fusebox In Engine Compartment
• For integrated relay / fuseboxes with 24 fuses, see Integrated Relay / Fusebox In Engine Compartment  .
