Exposing The Integrated Relay/Fusebox In The Cargo Compartment

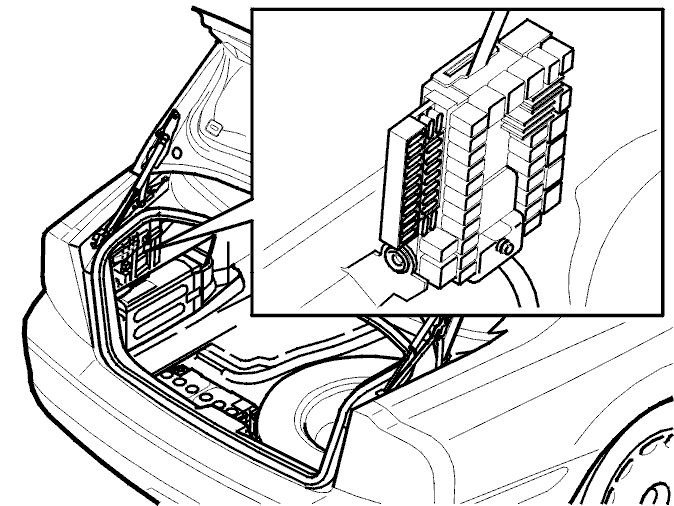

Fig 1: Locating Integrated Relay/Fusebox In Cargo Compartment

GLL104000

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the catch for the left-hand side panel in the cargo compartment. Fold down the upholstery
If necessary:
- Remove the floor hatch in the cargo compartment
- remove the clips on the floor. Remove the upholstery
- remove the road traffic information module (RTI), see Road Traffic Information module (RTI), Replacing .
- remove the CD changer. See CD Player, Replacing .
