Fusebox, Passenger Compartment, Replacing: Removal: Fusebox

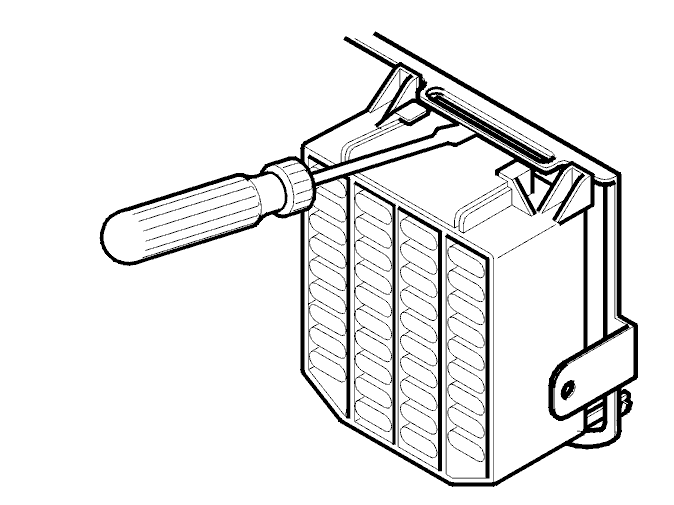

Fig 1: Pressing Up Fusebox Catch Using Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the cover
• Remove the fusebox by pressing up the catch using a screwdriver and releasing the upper edge.
