Replacing Relay/Shunt

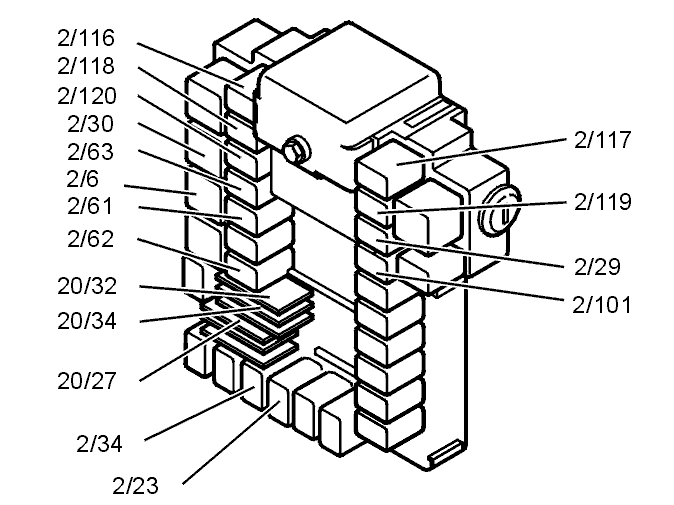

Fig 1: Identifying Relays
Courtesy of VOLVO CARS OF NORTH AMERICA.
Expose the relay box for better access.
Replace relay/shunt.
