Checking Reclining Seat

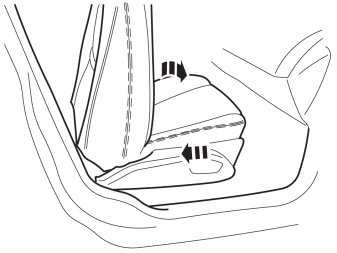

Fig 1: Identifying Reclining Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Run/push the seat to its rearmost position.

Run/screw the seat to its forward position.

Fold the seat back completely forward.

Run/screw the seat back backwards so that the seat rises at the trailing edge.

Check the whiplash unit by the rivet in the seat's trailing edge.

Fig 2: Identifying Whiplash Unit Rivet

Courtesy of VOLVO CARS OF NORTH AMERICA.

If there is no visible space between the rivet and the fitting, then the whiplash unit is functional.

Install in the reverse order.

Fig 3: Identifying Visible Space Between Rivet And Fitting

Courtesy of VOLVO CARS OF NORTH AMERICA.

If there is a visible space between the rivet and the fitting, then the whiplash elements on both sides of the seat shall be replaced acc. to Whiplash Unit, Replacing .
