Removing the brake lamp switch

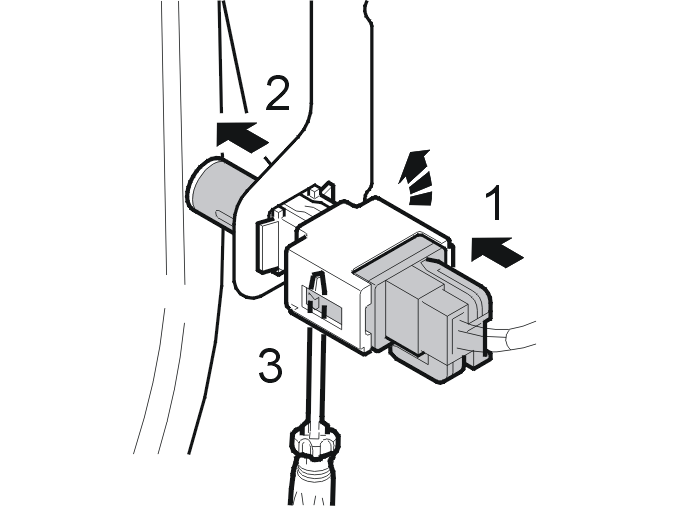

Fig 1: Removing Brake Lamp Switch
GLL150524Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the connector.

Press the brake lamp switch housing (1) forward towards the pedal box bracket. This is to release the white locking sleeve (2).

Pull the white locking sleeve towards the tip of the brake lamp switch as far as it will go.

Press in the brake lamp switch lock catch (3) from below with a small screwdriver. Bend the switch up, pull out.
