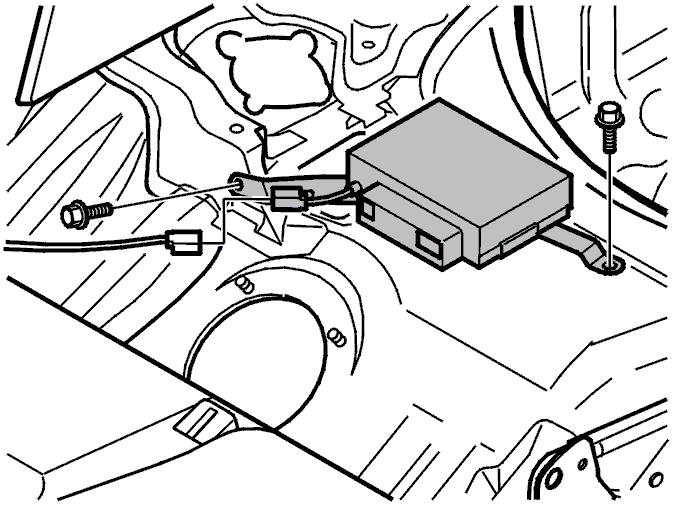

Carphone box

4-door body

Remove:

• the rear seat cushion according to CUSHION, REPLACING
• the side cushion according to SIDE CUSHION
• the parcel shelf according to Parcel shelf .

• the three connectors
• one retaining clip.

• the unit.

Install:

In reverse order.

5-door body

Remove:

• the rear seat cushion according to CUSHION, REPLACING
• the side cushion according to SIDE CUSHION .

• the three connectors
• one retaining clip.

• the unit.

Install:

In reverse order.
