Sun Roof Module (SRM), Calibrating: Calibration
Calibrating the sun roof module (SRM)
The sun roof must be closed.
Ignition in position I.
1

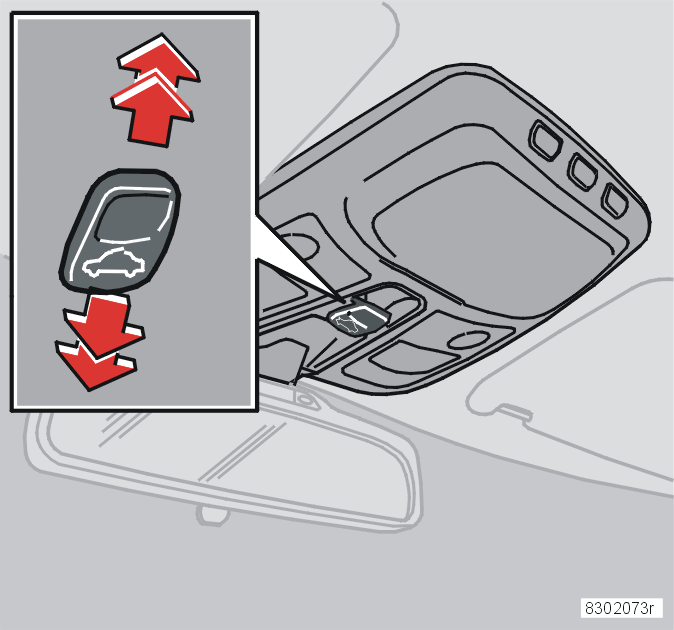

Press the sun roof switch so that the sun roof is in the tilt position.
Release the switch.
2
Press the switch (in the tilt position) again for at least 5 seconds so that the sun roof flickers.
Release the switch.
The calibration is complete.
If the sun roof has not moved to the correct position, carry out calibration again.
HINT: If the sun roof has still not moved to the correct position:
HINT: Press the sun roof switch so that the sun roof moves to the rearmost position (completely open).
HINT: Release the switch.
HINT: Press the switch (in the completely open position) in again for at least 5 seconds so that the sun roof flickers.
HINT: Release the switch.
HINT: Close the sun roof and carry out calibration again. See steps 1 and 2 above.
