Install The Drive Shaft Seal

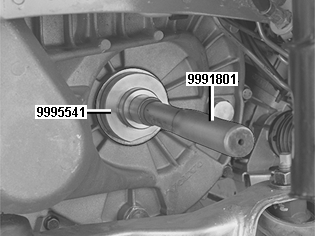

Fig 1: Installing Drive Shaft Seal Using 999 5541 And 999 1801
GLL109288Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:

Clean thoroughly before installing the new seal

Apply a small amount of grease to the sealing lip.

Use drift 9995541 and shaft 9991801 .

Place the side of the drift marked M56 against the drive shaft seal.
