Removing Sealing Ring

Fig 1: Identifying Expander 999 5777, Puller Rod 999 5777 And Extractor 999 5777

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install: 9995777 and 9995777 to 9995575 .

9995575 used with: 9995576 (foot operated).

Alternatively: 9992615 , which consists of puller cylinder and a compressed air powered hydraulic pump.

Fig 2: Identifying Sleeve 999 5777

Courtesy of VOLVO CARS OF NORTH AMERICA.

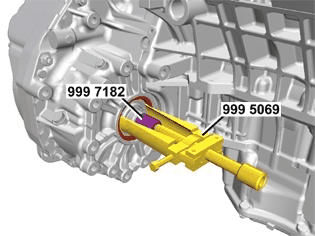

Fig 3: Extracting Seal Using Special Tools, 999 7182 And 999 5069

Courtesy of VOLVO CARS OF NORTH AMERICA.

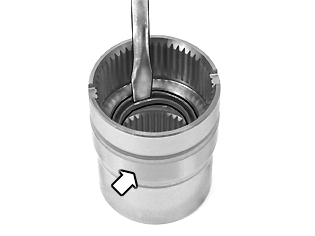

Fig 4: Tapping Sealing Ring Out Of Socket Using Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.
