Removing The CV Joint Housing

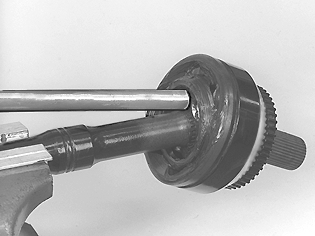

Fig 1: Tapping Off Constant Velocity Joint Housing
GLL109783Courtesy of VOLVO CARS OF NORTH AMERICA.

Tap off the constant velocity joint housing.

Use a brass drift.

NOTE:

Only tap the inner ring. Take care not to damage the ball holder or outer ring.
