Installing The New Boots On The Drive Shaft

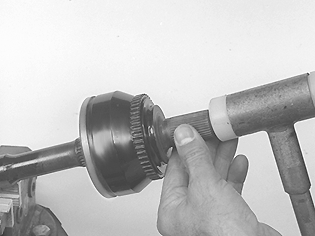

Fig 1: Installing New Gaiters On Drive Shaft
GLL109790Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the constant velocity joint on the drive shaft

Ensure that inner ring is straight in the constant velocity joint.

Tap on the constant velocity joint. Use a rubber mallet.

Check that the snap ring is seated in its groove. Do this by measuring the distance. See Checking The Dimension .
