Replacing The Circlip

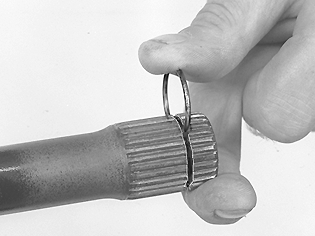

Fig 1: Installing New Lock Ring

GLL109784

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new snap ring included in the boot kit.
