Lubricating The Constant Velocity Joint

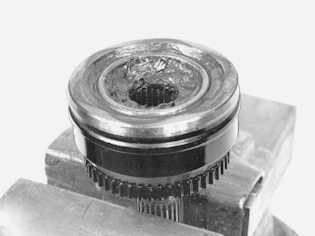

Fig 1: Lubricating Constant Velocity Joint

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the constant velocity joint thoroughly.

Apply grease behind the joint via the shaft hole in the inner ring.

Use half of the grease packet. The remainder will be used later in the boot. See Greasing The Boot .
