Cleaning Constant Velocity Joint Components

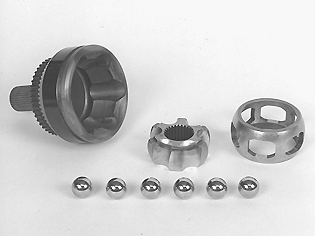

Fig 1: Identifying Constant Velocity Joint Components
GLL109788Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the constant velocity joint components thoroughly

NOTE:

Replace the drive shaft assembly if any component has cracking or wear damage. Scratches and minor pitting of the ball tracks are permitted.
