Removing The Sealing Ring For The Connecting Socket

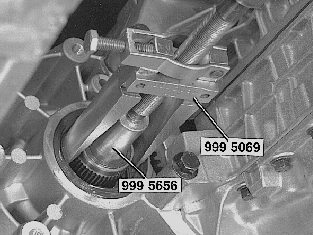

Fig 1: Removing Sealing Ring From Gearbox
GLL109195Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the sealing ring from the gearbox.

Use extractor 9995069 and counterhold 9995656 .

Check that there are no seal remnants.
