Installing The Snap Ring And Connecting Socket

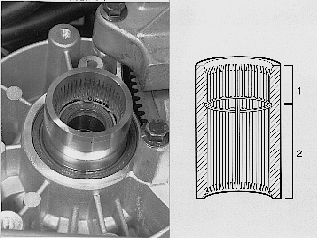

Fig 1: Installing Sleeve In Gearbox

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the circlip for the socket
• the sleeve in gearbox with the long splined section (2) toward the gearbox.

Use a rubber mallet to knock in the sleeve.
