Installing The O-ring and sealing ring

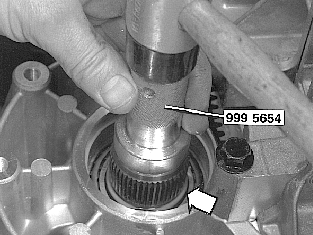

Fig 1: Installing O-Ring And Sealing Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• a new O-ring for the connector sleeve on the differential housing
• a new sealing ring for the drive shaft.

Lubricate the seal using the wheel bearing grease, P/N 116 1241-3.

Use drift 9995654 .

Installing The Sealing Ring

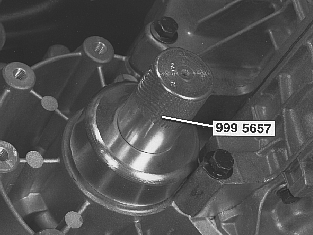

Fig 2: Installing Sealing Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the sealing ring for the connector seal.

Lubricate the seal using the wheel bearing grease, P/N 116 1241-3.

Use drift 9995657 .

Tap in the seal until the drift bottoms on its stop against the gearbox.

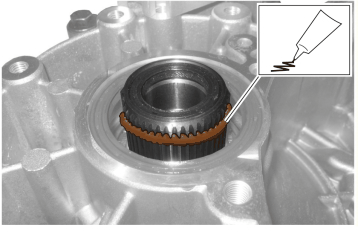

Fig 3: Applying Adhesive

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use: Adhesive, part no. 116 1370
