Greasing The Boot

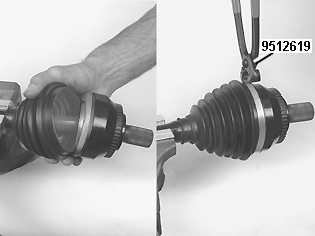

Fig 1: Securing Boot With 9512619
GLL109791Courtesy of VOLVO CARS OF NORTH AMERICA.

Grease the boot.

Apply the remaining grease from Lubricating the constant velocity joint .

NOTE:

Ensure that there is no grease on the mating surfaces between the boot and the constant velocity joint and the shaft.

Remove excess grease. Use methylated spirit.

Ensure that the boot is in position on the constant velocity joint housing.

Install a new clamp. Use pliers 9512619 .
