Removing The Sealing Ring From The Gearbox

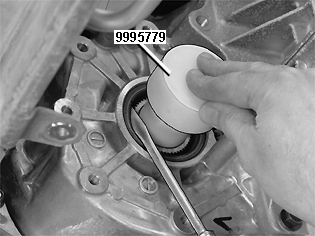

Fig 1: Identifying Drift 999 5779
GLL109590Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a screwdriver to pry out the seal.

Position drift 9995779 on the end of the differential to protect the sealing face from damage when removing the seal. Do not damage the surfaces in the transmission housing.
