Installing The Sealing Ring For The Differential

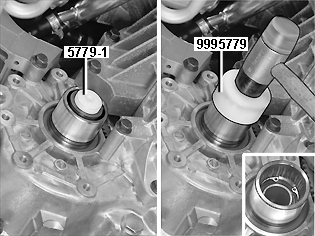

Fig 1: Installing Sealing Ring For Differential

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position guide pin 9995779 in the end of the differential. Lubricate the seal ring's lip and the guide pin with ATF oil. Tap in the seal using drift 9995779 . Tap in the drift until to contact with the end of the connecting sleeve.

Install the circlip for the connecting socket.
