Installing The Sealing Ring For The Connecting Socket

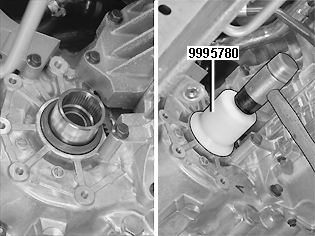

Fig 1: Installing Sealing Ring 999 5780

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the sealing ring lip and the mating surface on the socket. Use ATF fluid.

Insert the seal ring to the sleeve. Tap the sleeve into place with drift 9995780 . Tap in the drift until it contacts the transmission housing.
