Removing The Sealing Rings

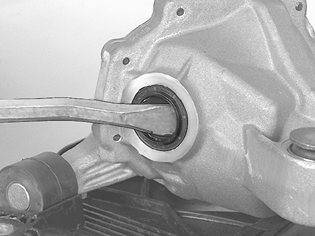

Fig 1: Removing The Sealing Rings

GLL109828

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a jimmy bar.

Check that no seal residue is left in the final drive housing.
