Removing Drive Shafts

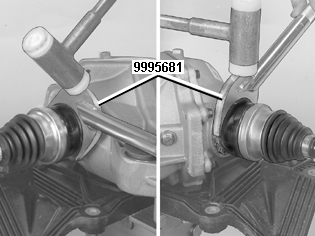

Fig 1: Identifying Drive Shafts & Jimmy Tool (999 5681)
GLL109827Courtesy of VOLVO CARS OF NORTH AMERICA.

Use tool 9995681 . See illustration for instructions on how to use the tool on the left and right-hand sides.
