Removing The Differential Seals, Right-Hand Side

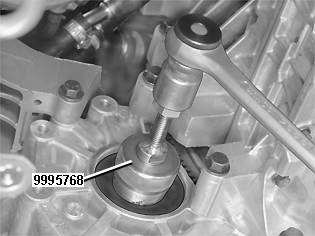

Fig 1: Cap Nut For Extractor 999 5768 Installed
GLL109425Courtesy of VOLVO CARS OF NORTH AMERICA.

Place a container underneath the transmission.

Install the cap nut for extractor 9995768 .

Lightly grease the locating pin on the extractor.

Use a ratchet with an extension and socket. Press the extractor in against the seal at the same time as the extractor is turned.

Tighten so that the threaded cone screws firmly into the seal.

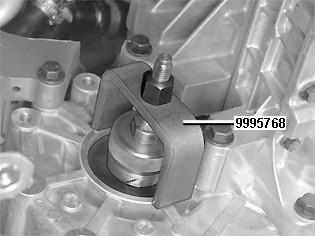

Fig 2: Removing Seal Using Extractor 999 5768
GLL109426Courtesy of VOLVO CARS OF NORTH AMERICA.

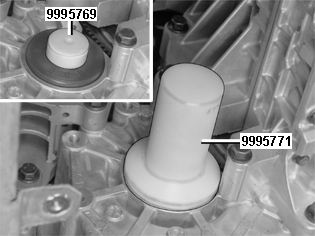

Fig 3: Installing Locating Pin 999 5769 And Installing Seal On Locating Pin Using Drift 999 5771
GLL109427Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the edges of the new seal using automatic transmission fluid.

Install locating pin 9995769 .

Install the seal on the locating pin. Use drift 9995771 .

Tap in the seal until the drift is against the transmission.

Remove the locating pin.

Install the drive shaft. See Drive Shaft Right, Replacing .

Check the oil level. See.
