Position The Shaft In A Vice

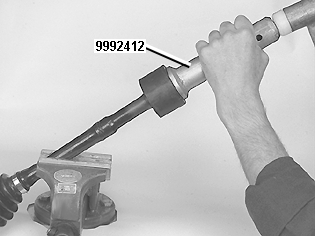

Fig 1: Tapping Vibration Damper On Using Drift 999 2412

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ensure That The Shaft Is Absolutely Free Of Grease. Brush The Shaft And The Hole In The Vibration Damper With Soapy Water.

Use Drift 9992412 . Tap The Vibration Damper On. Dry The Soapy Water Off The Shaft. Adjust The Damper To The Measurement Noted Previously. See Only Drive Shafts With Vibration Damper: .
