Check The Measurement

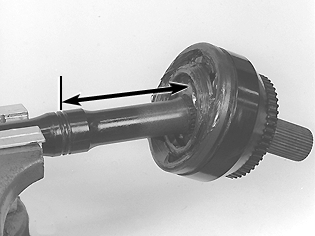

Fig 1: Measuring Distance From Inner Ring To Inner Groove On Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Wipe Off The Grease From The Constant Velocity Joint Housing.

Measure The Distance From The Inner Ring To The Inner Groove On The Shaft. Note The Measurement.
