Replacing The Rear Bushing In The Final Drive Housing

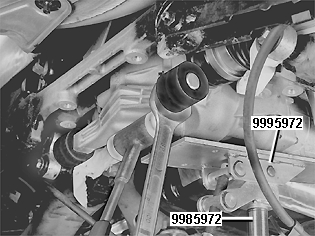

Fig 1: Removing Rear Bushings In Final Drive Housing
GLL109875Courtesy of VOLVO CARS OF NORTH AMERICA.

Removal

Lift up the final drive housing at the front edge so that it is horizontal.

Use an open wrench as support and tap off the bushing on both sides from the final drive.

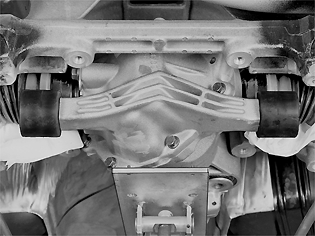

Fig 2: Installing Final Drive Housing
GLL109876Courtesy of VOLVO CARS OF NORTH AMERICA.

Installation

Tap in the new  bushings. Use a rubber mallet.
