Installing The Front Bushing In The Final Drive housing

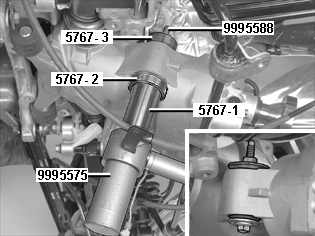

Fig 1: Installing The Front Bushing In The Final Drive Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the outer sleeve of the new  bushing with petroleum jelly.

Position the new  bushing with the beveled edge towards the final drive housing.

Install:

• drift 5767-1 with counterhold 5767-2
• drift 5767-3 against the bushing.

Push in the bushing until it reaches the support lugs in the final drive housing.

Install the washer on top of the bushing. Press the washer into place using the screw for the bushing and a nut.
