Removing The Seal

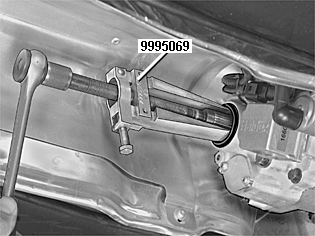

Fig 1: Removing The Pinion Seal Using Extractor 999 5069

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the seal from the Active on Demand Coupling. Use extractor 9995069 .

Check thoroughly that no seal residue remains.
