Removing The Flange

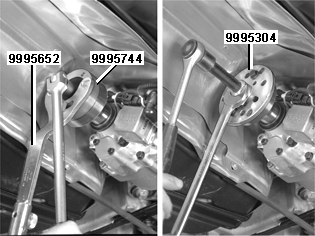

Fig 1: Removing Flange Nut Using 999 5652, 999 5744, and 999 5304

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nut for the flange. Use counterhold 9995652 and adapter 9995744 . Mark the flange in relation to the end of the shaft.

Position a container underneath the Active on Demand Coupling.

Remove the flange. If the flange is stuck, use puller 9995304 .

Check that the mating surface on the flange is not damaged. If necessary replace the flange.
