Installing The Seal

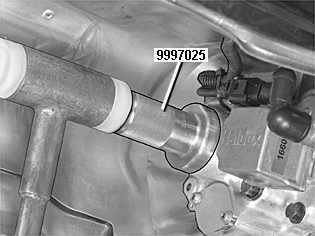

Fig 1: Installing Pinion Seal Using Drift 999 7025
GLL109915Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the new seal using the oil for Active on Demand Coupling, P/N 116 1641 (1 liter packs).

Use drift 9997025 for installation. Tap the seal into place until the surface of the drift is against the housing for Active on Demand Coupling.
