Installing The Flange

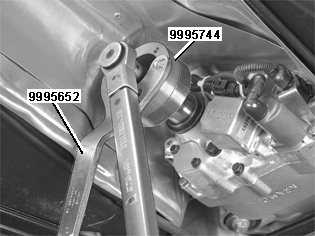

Fig 1: Installing Flange Using 999 5652 And 999 5744
GLL109898Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the flange on the AOC (Active on Demand Coupling) using the previous markings (if using the old flange).

Install a new nut for the shaft and flange. Use counterhold 9995652 with adapter 9995744 .

Tighten the nut. Tighten to 100 Nm  .

Fill the AOC (Active on Demand Coupling) with oil. Check the oil level. See Active on Demand Coupling (AOC), replacing .
