Removing The Final Drive

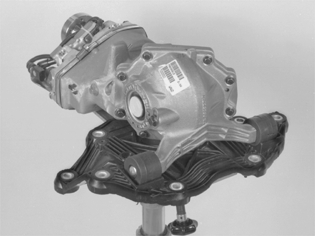

Fig 1: Identifying Active On Demand Coupling / Final Drive

GLL109896

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the Active on Demand Coupling / final drive from the hoist.
