Removing The Active On Demand Coupling

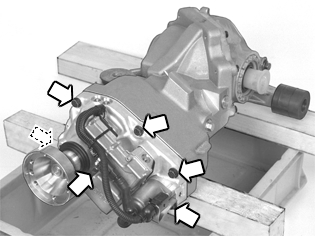

Fig 1: Identifying Active On Demand Coupling Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the Active on Demand Coupling / final drive over a stable container together with some supports.

Remove the 6 screws holding the Active on Demand Coupling.

Pull the Active on Demand coupling straight out from the final drive.

Place the coupling on a clean surface.
