Removing the propeller shaft

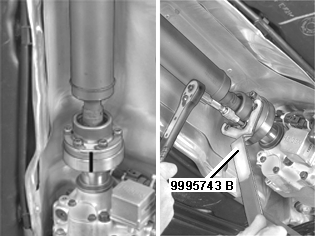

Fig 1: Removing/Installing Screws From Joint Using Counterhold (9995743)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Mark the position of the joint on the flange.

Remove the screws from the joint. Use counterhold 9995743 .

Leave one screw in place by a few threads for safety.

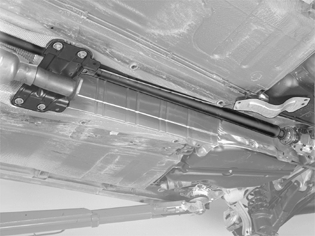

Fig 2: Identifying Center Bearing Support Screws Of Propeller Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws from the support for the center bearing for the propeller shaft.

Slacken off the screws in the support for the center bearing on the right-hand side a few turns. Fully remove the screws on the left-hand side

Let the center support hang down so that the propeller shaft can be angled.

Remove the screw from the joint.

Press the shaft joints together. Remove the shaft from the carrier plate. Move the shaft to one side.

Tie up the shaft.
