Preparations For Installing The Active On Demand Coupling

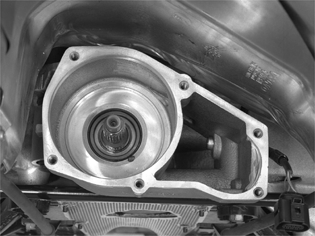

Fig 1: Identifying Final Drive Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the final drive housing. There must not be any lint from any paper or cloths.

Check that the mating surface is undamaged.

Fig 2: Identifying Active On Demand Coupling

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the surface of the AOC (Active on Demand Coupling) is undamaged. Place the new gasket on the coupling. Apply a little grease.
