Installing The Flange

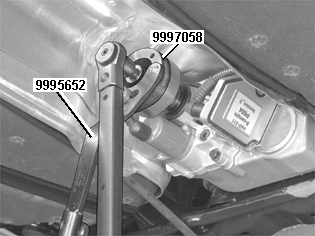

Fig 1: Installing Flange Using 999 5652 And 999 7058
GLL109926Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the flange on the AOC (Active on Demand Coupling) using the previous markings (if using the old flange).

Install a new nut for the shaft and flange. Use counterhold 9995652 with adapter 9997058 .

Tighten the nut. See Summary of tightening torques for specific components .

Fill the AOC (Active on Demand Coupling) with oil. Check the oil level. See Clutch (AOC), replacing .
