Installing The Oil Pump

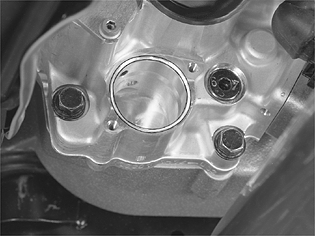

Fig 1: Identifying Oil Pump Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the seat for the oil pump is clean. There must not be any lint from paper or cloths.

Fig 2: Identifying Oil Pump And O-Rings

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the new O-rings are in position. Lubricate the O-rings using oil for the Active on Demand Coupling, P/N 116 1641 (1 liter container).

Fig 3: Locating Oil Pump Connector And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the oil pump. Press the pump in as far as possible. Lightly tighten the 2 M5 screws alternately. Tighten. See Summary of tightening torques for specific components .

Connect the connector.
