Filling and checking the oil in the final drive

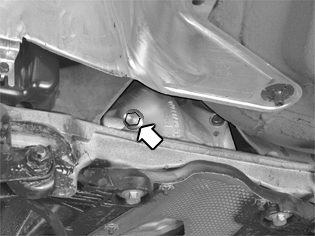

Fig 1: Locating Filler Plug
GLL109913Courtesy of VOLVO CARS OF NORTH AMERICA.

Fill the final drive with oil. Check the oil level. P/N 116 1620-8 (1 liter container)

Tighten the filler plug acc. to Summary of tightening torques for specific components .

Volume approx. 0.5 l.

Fill oil up to the filler plug. Suck out 0.1 l oil.
