Filling and checking the oil in the Active on Demand Coupling

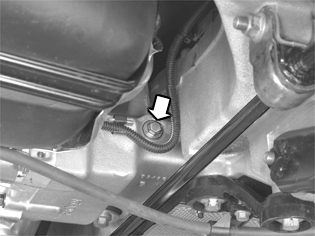

Fig 1: Identifying Oil Fill/Level Plug In Active On Demand Coupling

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use correct oil acc. to: Lubrication transmission .

Tighten the filler plug acc. to Summary of tightening torques for specific components .

Volume approx. 650 ml.

Fill oil up to the filler plug. Suck out 0.1 l oil.

CAUTION:

If the AOC (Active on Demand Coupling) has been replaced with a new one, the car must be driven carefully in tight circles in both directions and then driven for a few kilometers after the oil is filled. Top up the oil level and check again according to the above.
