Removing The Front Bushing From The Final Drive Housing

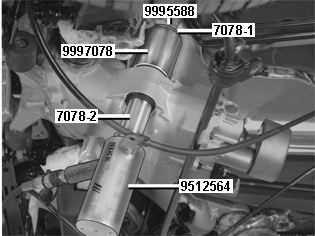

Fig 1: Removing The Front Bushing From The Final Drive Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use puller cylinder 9512564 or 9995575 and associated pump 9995576 . Place connecting rod 9995588 in the puller cylinder and sleeve 7078-2 against the puller cylinder and the bushing.

Position counterhold 9997078 and washer 7078-1, turn the counterhold so that the cut-out is facing the radius of the final drive housing and so that it is supported on the surrounding cast surface.

Press out the bushing.
