Removing The Rear Section Of The Exhaust System

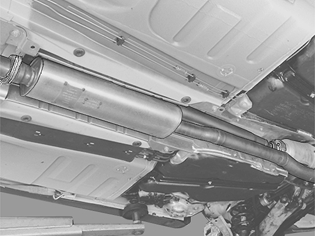

Fig 1: Identifying Rear Exhaust System Section
GLL109871Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the vehicle.

Support the front section of the exhaust pipe so as not to put strain on the exhaust manifold.

Remove the rear exhaust system assembly.
