Removing the drive shaft seal

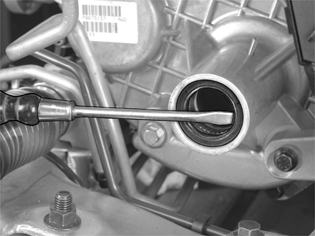

Fig 1: Removing Drive Shaft Seal Using A Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a screwdriver.

NOTE:

Do not damage the needle bearing when placing the screwdriver between the needle bearing and the sealing ring.

Remove the sealing ring.

NOTE:

Check carefully that no residue from the old seal is left in the chain housing.
